What is the difference between gantry type high speed punching machine and C type high speed stamping machine?

2022-04-02 14:11:05 Mr.Li 0

In the world of metal stamping, I believe we all know that both gantry type high speed punching machine and C type high speed press stamping machine are the most intelligent lathes in the punching machine family. They both have the advantages of super high speed, high precision and high stability, and are favored by the majority of stamping users.

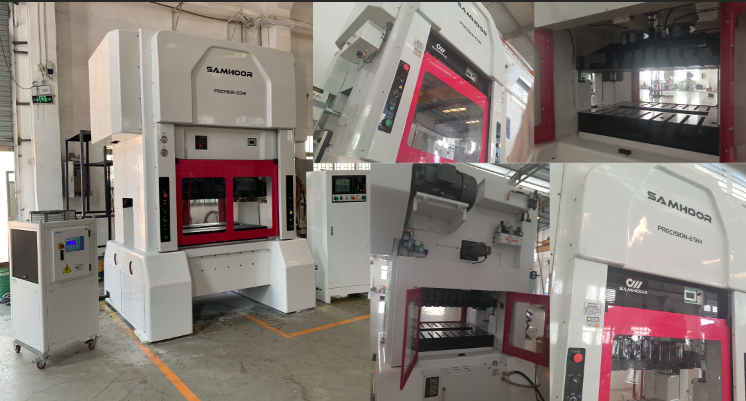

High Speed Stamping Power Press Machine Manufacturer [Precision Presses supplier From China]

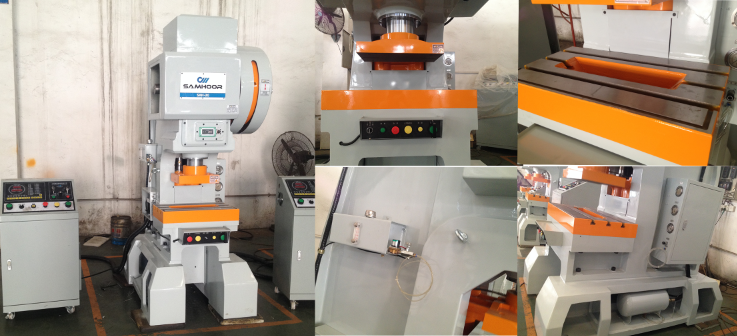

High Speed Stamping Power Press Machine Manufacturer [Precision Presses supplier From China]

So, do you know what is the difference between gantry high-speed punching machine and C-type high-speed punching machine? Today, here, Joey of Samhoor Company will tell you more about them from the following six aspects.

1. Appearance:

The H and C type of high-speed punching machine refers to its appearance looks very much like the corresponding letter. For example, gantry punching machine is also called H type punching machine because its structure looks like an H; and C type punching machine is more intuitive, the slider and lifting plate opening on the appearance of high strength polypropylene wire is very much like a C letter, so it is also called C type high speed stamping machine.

2. Machine body/bed:

The bed of C-type is C-shaped and semi-enclosed, and the die is fixed in the form of double sides.

The bed of gantry type is closed, the body is not easily deformed, and the fixed form of this die is four-sided.

This determines the difference of toughness and precision when processing products.

3. Guide pillar:

C-type high-speed punching machines are three-link guide columns.

Gantry type high-speed stamping machine is six-link guide pillar.

The six-link guide pillar is more stable for stamping products.

4.Anti-vibration:

The bottom of the C-type high-speed punching machine is anti-vibration by installing anti-vibration feet.

The anti-vibration of gantry type high-speed punching machine is by installing air cushion feet

5. Structure:

C-type high-speed punching machine: open bed structure, easy to be deformed by long time force and lower precision.

Gantry high-speed punching machine: the bed structure is fully enclosed, high rigidity, not easily deformed by force, and higher precision.

6. Feeder:

C-type high-speed punching machine with rolling feeder.

Gantry type high-speed punching machine with clip feeder.


From the above configuration structure and other aspects, it determines the difference both of them of processing performance and price. Since the gantry type high-speed punching machine has higher processing accuracy, better anti-vibration performance and superior processing stability than the C-type high-speed punching machine, the price of the gantry type high-speed punching machine will naturally be slightly more expensive.


So, gantry type high-speed punching machine has so many advantages, and the high-speed stamping machine on the market is a wide variety of the good and bad are intermingled, as a business shall we how to choose? Samhoor precision machinery Company will tell you the secret of choosing high-speed punching machine:

A. Tonnage:

Gantry high-speed punching machine has different tonnage, the so-called punching machine tonnage refers to the instantaneous impact force released during the operation of the punching machine, and there’re three commonly used tonnage of the gantry high-speed punching machine like 30 tons, 45 tons and 65 tons. The higher the tonnage, the higher its processing accuracy. Of course, the cost will also be correspondingly higher. Therefore, it is very important for enterprises to choose the right tonnage to reduce the cost of machine deployment and production cost.

B. Safety:

A qualified punching machine should have a qualified safety assurance device to ensure the personal safety of products and employees. Gantry high-speed punching machine equipment requires two-hand operation and has intelligent emergency stop and other devices to greatly protect the safety of the operator.

C. Accuracy:

The precision of the gantry high-speed punching machine is related to the tonnage mentioned above, but also to the processing precision of the gantry high-speed punching machine itself. The speed control of the gantry high-speed punching machine itself will also affect the precision of the gantry punching machine, so the enterprise should choose the appropriate tonnage and precision according to the precision requirements of the product stamping parts.

D. Energy consumption:

With the policy requirements of green energy conservation and environmental protection and ecological environment protection put forward, as well as the continuous expenditure of energy costs, the energy consumption of gantry type high-speed punching machine is also not to be underestimated. Reducing energy consumption can reduce the cost of products. Choosing energy-saving and environment-friendly high-speed punching machines is the first choice for enterprises that advocate green protection.


Social benefits that can be brought by gantry type high-speed punching machine:

Gantry high-speed punching machine is used in a large number of electronic factories and hardware factories, such as Motor lamination High Speed Press Stamping Machine, Heat pipe heat sink High Speed Stamping Machine, Heatpipe assembly heat sink high speed punching machine and so on. In order to promote the development of the national economy, precision punching machine towards intelligent development, that is to say, the gantry high-speed punching machine will become more and more energy efficient, the tonnage is getting bigger and bigger, the efficiency of high-speed punching machine is also getting higher and higher, prompting the punching machine to change from full manual operation to intelligent automatic processing!


The above content is the detailed introduction of the difference between the closing gantry type and C-type high-speed punching machine, I hope it will be helpful to you. For more content about high-speed punching machine, please pay more attention to Samhoor Precision Machinery Co.,Ltd. Thanks.
