CPU heatsink copper pipe heat sink Gantry type HK-125 high speed precision punching machine

High speed stamping machine can produce any metal, copper or aluminal materials stamping parts, like the copper pipe heat sink. Heat pipes are ideal for transporting heat to a remote heat sink. Changes to shape, wick thickness, wick porosity and fluid loading are optimized for each heat sink design.

Technical Parameter

Model
HK-85HK-125HK-200
Capacity85 ton
125 ton200 ton
Stroke of slide(mm)20
30405020
30405020304050

Stroke per minute(S.P.M)

200-600200-500200-450200-400

200-550

200-

500

200-

450

200-400200-500200-450200-400200-350
Die-Height(mm)315-365310-360305-355300-350

365-415

360-410

355-405

350-400360-410355-405350-400345-395
Slide Adjustment(mm)505050
Slide Area(mm)1200*5001300*6001600*700
Bolster Area(mm)1200*750*1501400*850*1601700*950*180
Bed Opening(mm)900*1301150*2001400*280
Main Motor(HP)304040
Presses Dimension(mm)2530*1970*31502800*2100*34603100*2200*3750
Presses Precision

GB(JIS) 1 Class

 (One-Level)

GB(JIS) 1 Class

 (One-Level)

GB(JIS) 1 Class (One-Level)

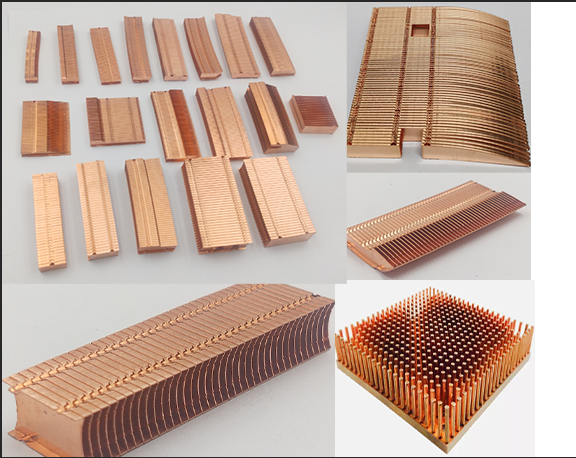

Press Parts Showing:

Heat pipes are ideal for transporting heat to a remote heat sink. Changes to shape, wick thickness, wick porosity and fluid loading are optimized for each heat sink design. High speed stamping machine can produce any metal, copper or aluminal materials stamping parts, like the copper pipe heat sink.

CPU Copper pipe heat sink125.png


Application of the heat sink stamping parts:

Machines: Industry, Medical, Military machines.

Home appliances: pico projector, electronic refrigerator etc.


Our Advantages:

1. Advanced industrial design ideas, low noise, low consumption, and good saving energy.

2. Adoption of high-strength cast iron, which's more resistant to minimal vibration, ensuring stamping accuracy and the service long-life.

3. Microcomputer controls system and few peripheral electrical elements with high stability. Operator can disassemble the board of the press, which is easy for maintenance.

4. Hydraulic overload protector with clutch brake is equiped as a standard feature to cause emergency stop instantly , that can greatly ensure maximum protection for the press and die.

5. Using oil lubracation system introduced MPA from USA, which's fully ensuring the high-speed lubrication requirements,reduce oil leakage of the press and remain the cleaness of the press.

6. American MAC low voltage solenoid valve, low temperature rise, low noise, speed accurate to 12000 times per minute.


Notice of production:

In addition to choosing a high manufacturing accuracy, an reasonable die structure, good heat treatment effect and correct selection of die accuracy, correcting use,maintenance of die are also pretty important links.

The following points here should be paid more attention to:

1. The most importing thing is strict and correct using the die equipment.

2. Checking  the rotating disc and the mounting base of the die on a regular basis to guarantee the coaxial accuracy of the upper and lower rotating discs.

3. After the die install, pls remember to check whether the fastening screw of the installation base of the die is locked correctly.

4. If the edge of punch and concave die is worn out, it's ought to stop using and grind in time. Otherwise, the wear degree of the die edge will be expanded rapidly, the wear of the die will be accelerated, and the quality of the high speed stamping machine and the life of the die will be reduced.

5. The mould should be put back to the designated position in time after using, and be treated with oil and rust-proof immediately.

6. To guarantee the service life of the die, the spring of the die should be replaced regularly, which can greatly to prevent the fatigue damage of the spring from affecting the use of the die.

7. Last but not least, no matter whether you use any dies or not at that time, please kindly ensure your own safety.


Production WorkShop

Workshop






Samhoor Company

Samhoor's Chinese transliteration: three advantages,Expressed as: good quality, good price, good service.This is the request of Samhoor High Speed Press,But also the purpose of customer service.
