How to choose a high-speed punching machine?

2022-03-30 17:02:53 Mr.Li 10

There are millions of high-speed precision punching machines, but do you know how to choose the right high-speed punching machine?

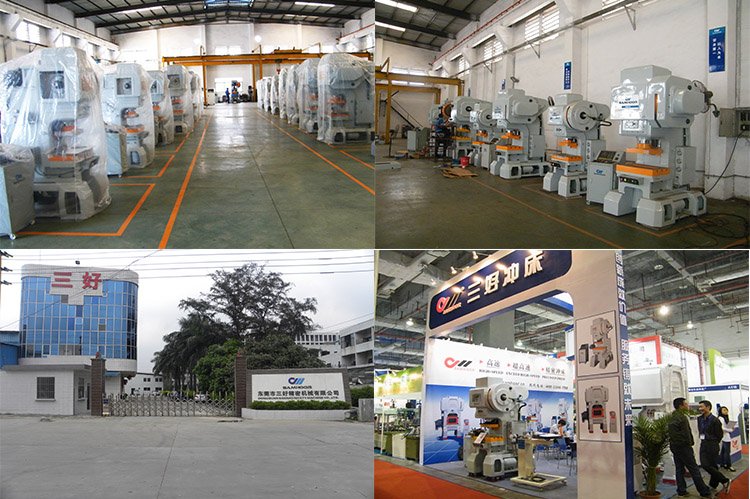

C type & H type high speed press punch machine

In the modern era of "turmoil", despite the constant epidemic and war, the technology and economy are still developing vigorously. With the rapid development of science and technology, high-speed presses are becoming more and more widely used in the stamping industry based on the quality and capacity requirements of products. In particular, precision small computer components and accessories, small parts of cell phones, LED brackets, transformer EI pieces, precision explosion-proof valves, IC frames, motor stator and other industries need to use high-speed presses. So how do we properly purchase high speed punching machines? Bring your shining eyes and let's choose from the following six aspects. Are you ready? Let's go!

I. Selection of model and Stroke

First of all, we can choose whether to use C-type high-speed punching machine or gantry high-speed punching machine and how much stroke of high-speed punching machine is needed according to the requirements of stamping products, precision, and size. Among the high-speed punching machines in the market, C-type is mainly available from 15, 25, 30, 35, 40, 45, 50, 60, 65, 80, 115, 120 tons; H-type is available from 30, 35, 45, 60, 65, 80, 85, 125, 200 tons. According to my survey of the market, the current stroke is 30, 45, 65, and 80 tons for C-type high-speed punching machine; and 30, 45, 65 tons for H- type high-speed punching machine.

II. Stroke and Die height

We have to select the stroke height and die height according to the shape of the stamping products, bending height, and the suitable die. At present, the stroke height of high-speed punching machine is mainly from 15, 20, 25, 30, 35, 40 to 50M, from which we can make a good choice of stroke.

III. Precision requirements

Accuracy is one of the most important testing criteria to determine the goodness of high-speed punching machine, so the accuracy requirement is the key to choose a good punching machine. We can test from the following four aspects: Parallelism, Perpendicularity, Integrated clearance and Dynamic repeat accuracy under the dead point. Although the current accuracy values can reach the qualified level, but we have to distinguish the long-term stability from the cast iron, crankshaft, bearings, copper bushings and other accessories of the punching machine material and processing technology.

V. The Feeder model, specifications to choose

According to the product material, feeding speed to choose roller feeder, NC feeder, gear feeder, clip feeder, etc. Current high-speed presses generally use roller feeder; and gear feeder is generally used in the stamping of the motor stator; NC feeder using digital adjustment, convenient and fast, 200 SPM speed or less cost-effective; clip feeder is more often used in the thinner punching materials. Then choose different specifications according to the width of the product material, such as 105: feeding width of 100MM, length of 50MM.

VI. Brand selection

According to the type of enterprise and customer object, you can choose imported brands or domestic assembly of imported brands, Taiwan brands, domestic brands. At present, the big foreign brands are: Switzerland BRUDERER BRUDER, Japan: Denshi Kyory KYORI, Yamada DOBBY; Taiwan brands are: Zhen Li, high will, etc.; and our domestic brands are: Samhoor, Ming Xun, Taikisan, Hongrui, etc.

VII. Cost-effective comparison

As we all know, the quality of foreign brands of punching machines is indeed better, from the mechanical material itself, and after decades of wear and tear correction, has a very high stability and very little failure rate. But the disadvantage is that the price is expensive, long delivery time, high cost of after-sales service.

Domestic High speed punching machines are also becoming more and more mature and stable, and affordable, with low after-sales and parts costs and maintenance costs. However, there are millions of high-speed punching machines on the market, with more brands and even some patchwork assembly machines. It is recommended to buy and sell the presses with poor cast iron, trachoma, stress deformation, non-standard parts processing and high wear rate.

Samhoor’s Precision High Speed Punching Machine is currently a domestic enterprise specializing in the research and development and manufacturing of the High-speed precision punching machines, the company is formalized from the scale, production and operation. Especially the C-type and gantry H- type high speed precision punching machine, its precision and stability can be comparable with the Japanese brand punching machine, all the parts are from the cutting-edge enterprises in the industry, good quality and guarantee. Samhoor Precision Machine Co.,Ltd pays great attention to after-sales service while continuously improving quality to create higher value for customers.

So, are you ready to choose a suitable High Speed Press Machine for your company?
